Master serie
Robust standard series for professional concrete and mortar
140 – 800 litres
Master serie
The Master series is our robust standard range of pan mixers — built for professional and reliable production of concrete and mortar.
The series is made from 140 to 800 litres and supplied with heavy-duty spur gearing. All our mixers can be produced in the colour the customer wants.
Technical data
Models & specifications

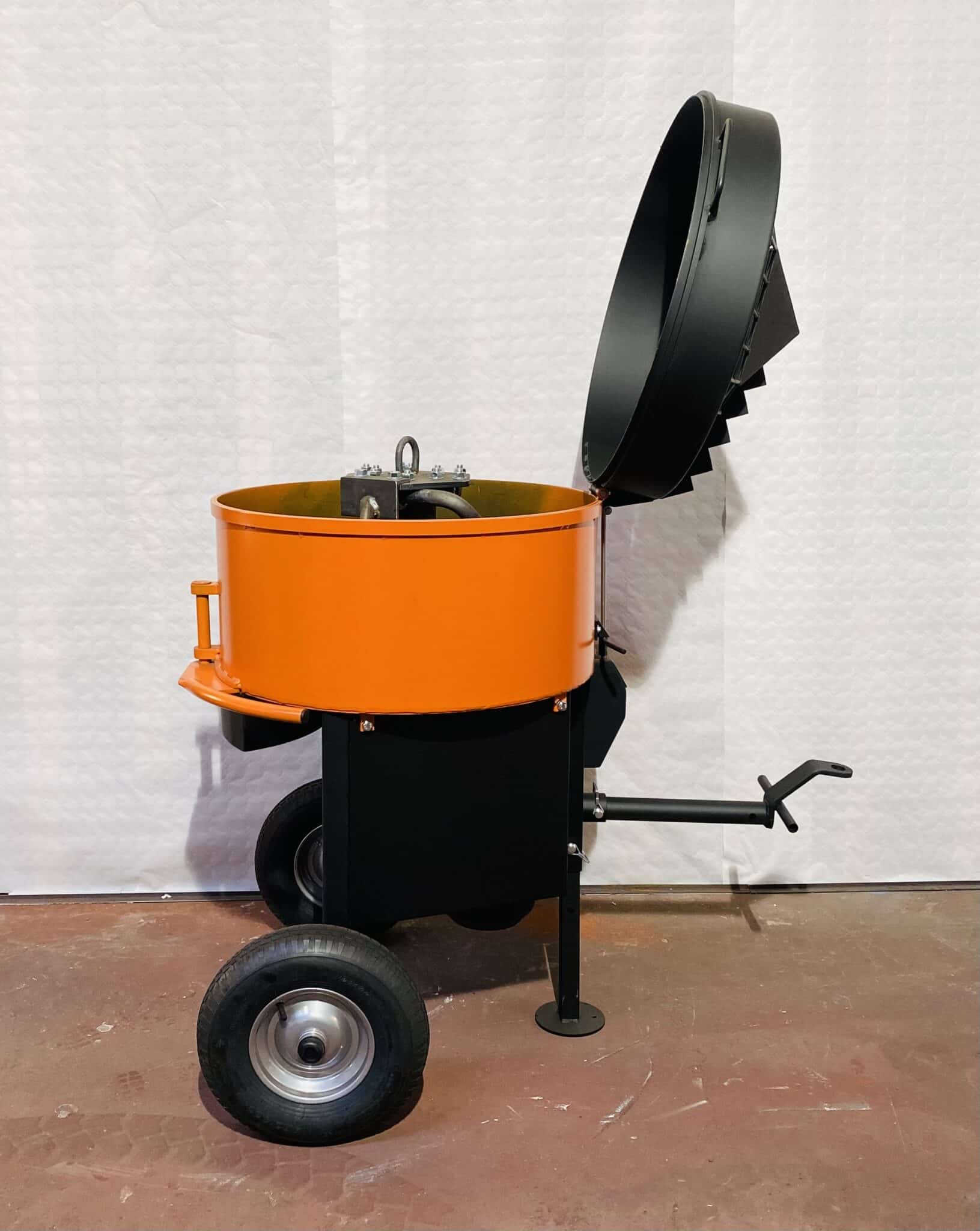

140L Master
- Dimensions
- H:144 cm / B:77 cm / L:66 cm
- Weight
- 230 kg
- Motor
- 3,0 kW 400V
- Gearing
- Spur gear
- Speed
- 36 / min
- Capacity
- approx. 85 litres
- Mixing drum
- 5 and 8 mm plate
325L Master
- Weight
- 343 kg
- Motor
- 3,0 kW 400V (5,5 kW)
- Gearing
- Spur gear
- Speed
- 32 / min
- Capacity
- approx. 200 litres
- Mixing drum
- 6 and 10 mm plate
500L Master
- Dimensions
- H:160 cm / B:127 cm / L:151 cm
- Weight
- 507 kg
- Motor
- 5,5 kW 400V (7,5 kW)
- Gearing
- Spur gear
- Speed
- 30 / min
- Capacity
- approx. 300 litres
- Mixing drum
- 6 and 10 mm plate
800L Master
- Dimensions
- H:175 cm / B:152 cm / L:176 cm
- Weight
- 782 kg
- Motor
- 7,5 kW 400V (11 kW)
- Gearing
- Spur gear
- Speed
- 27 / min
- Capacity
- approx. 500 litres
- Mixing drum
- 8 and 12 mm plate
Specifications are indicative and may change without notice. Contact us for details and special requirements.
