Quick Mixer serie

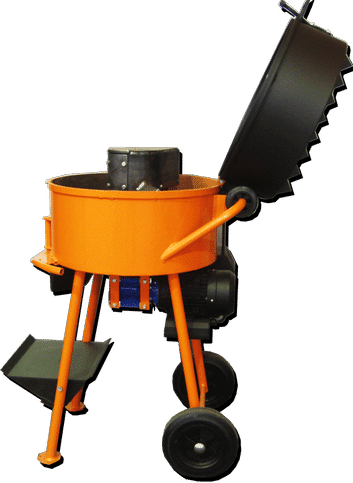

Patented rotating mixer arm — mixes up to 4× faster
40 – 800 litres
Quick Mixer serie
High-quality QUICK MIXERS from 40 – 800 litres, which with a patented rotating mixer arm mix up to 4 times faster than traditional pan mixers.
The QUICK MIXER series is well suited for self-levelling floor filler, mortar, tile adhesive and concrete for floors, grouting, etc.
Technical data
Models & specifications
40L Quick Mixer
- Dimensions
- H:118 cm / B:50 cm / L:66 cm
- Weight
- 88 kg
- Motor
- 0,75 kW 230/400V
- Speed
- 56 / min
- Capacity
- approx. 30 litres
- Discharge height
- 600 mm
60L Quick Mixer
- Dimensions
- H:118 cm / B:54 cm / L:70 cm
- Weight
- 97 kg
- Motor
- 0,75 kW 230/400V
- Gearing
- Worm gear
- Speed
- 57 / min
- Capacity
- approx. 45 litres
- Mixing drum
- 3 and 5 mm plate
80L Quick Mixer
- Dimensions
- H:120 cm / B:58 cm / L:76 cm
- Weight
- 118 kg
- Motor
- 1,1 kW 230/400V
- Gearing
- Worm gear
- Speed
- 48 / min
- Capacity
- approx. 60 litres
- Mixing drum
- 3 and 5 mm plate
100L Quick Mixer
- Dimensions
- H:120 cm / B:64 cm / L:80 cm
- Weight
- 132 kg
- Motor
- 1,5 kW 230/400V
- Gearing
- Worm gear
- Speed
- 48 / min
- Capacity
- approx. 75 litres
- Mixing drum
- 3 and 5 mm plate
200L Quick Mixer
- Dimensions
- H:133 cm / B:87 cm / L:106 cm
- Weight
- 188 kg
- Motor
- 3,0 kW 400V
- Gearing
- Worm gear
- Speed
- 48 / min
- Capacity
- approx. 150 litres
- Mixing drum
- 4 and 6 mm plate
325L Quick Mixer
- Dimensions
- H:156 cm / B:102 cm / L:126 cm
- Weight
- 452 kg
- Motor
- 5,5 kW 400V
- Gearing
- Spur gear
- Speed
- 34 / min
- Capacity
- approx. 240 litres
- Mixing drum
- 6 and 10 mm plate
Specifications are indicative and may change without notice. Contact us for details and special requirements.
